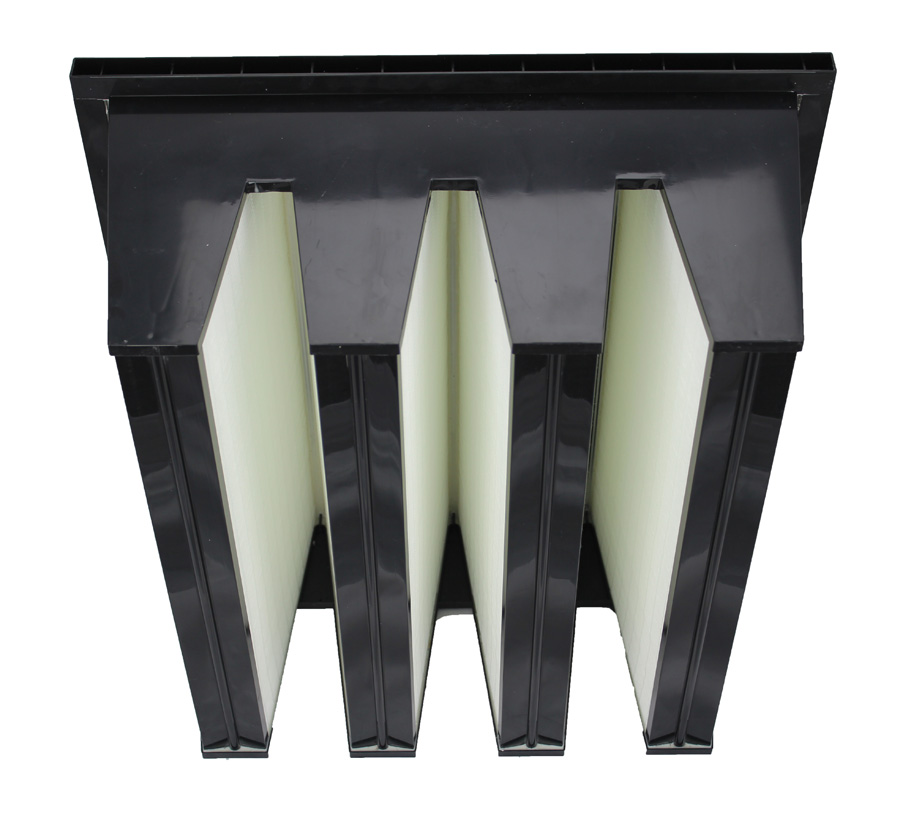

V bank HEPA filter
- Product Details:
-
Model: SVH
Dimension (mm): 592*592*292mm
Material: ABS plastic frame,fiberglass media
Rated air flow: 3200CMH
Place of origin: shenzhen,china
Minimum order quantity: 1pc
Packing detail: wooden box
Delivery time: 3-15days
Supply ability: 1000 pcs per month
Payment terms: TT,LC,Paypal
Detailed Product Description
Application: Air intake for gas turbines, compressors and large engines.
Type: High efficiency, incinerable compact filter.
Frame: Polypropylene and ABS.
Gasket: Expanded polyurethane placed on the downstream side (code 01).
Media: Glass fibre paper.
Separator: Hot-melt beads
Sealant: Polyurethane.
Grid: Glass fibre reinforcement grid placed downstream.
EN 1822 efficiency: H13 H14
Recommended final pressure drop: 600 Pa.
Temperature: 80°C maximum in continuous service.
N.B: Burst pressure: > 7500 Pa.
Optional: Alternative frame materials and size available on request.
Standard Specification
Type: High efficiency, incinerable compact filter.
Frame: Polypropylene and ABS.
Gasket: Expanded polyurethane placed on the downstream side (code 01).
Media: Glass fibre paper.
Separator: Hot-melt beads
Sealant: Polyurethane.
Grid: Glass fibre reinforcement grid placed downstream.
EN 1822 efficiency: H13 H14
Recommended final pressure drop: 600 Pa.
Temperature: 80°C maximum in continuous service.
N.B: Burst pressure: > 7500 Pa.
Optional: Alternative frame materials and size available on request.
Standard Specification
| Model |
Outside Dimensions (mm) |
Rated Air Flow (m3/h) |
H14 | Initial Pressure (Pa) | Filter Materials |
| SVH1-2 | 287×595×292 | 1600 | 99.99% | 200 | 4V OR 2V |
| SVH2-2 | 595×595×292 | 3200 | 99.99% | 200 | 4V |
| SVH5-6-3 | 495×595×292 | 2000 | 99.99% | 200 | 3V |
| SVH5-6-4 | 495×595×292 | 2700 | 99.99% | 200 | 4V |
| SVH5-5 | 495×495×292 | 2000 | 99.99% | 200 | 3V |
