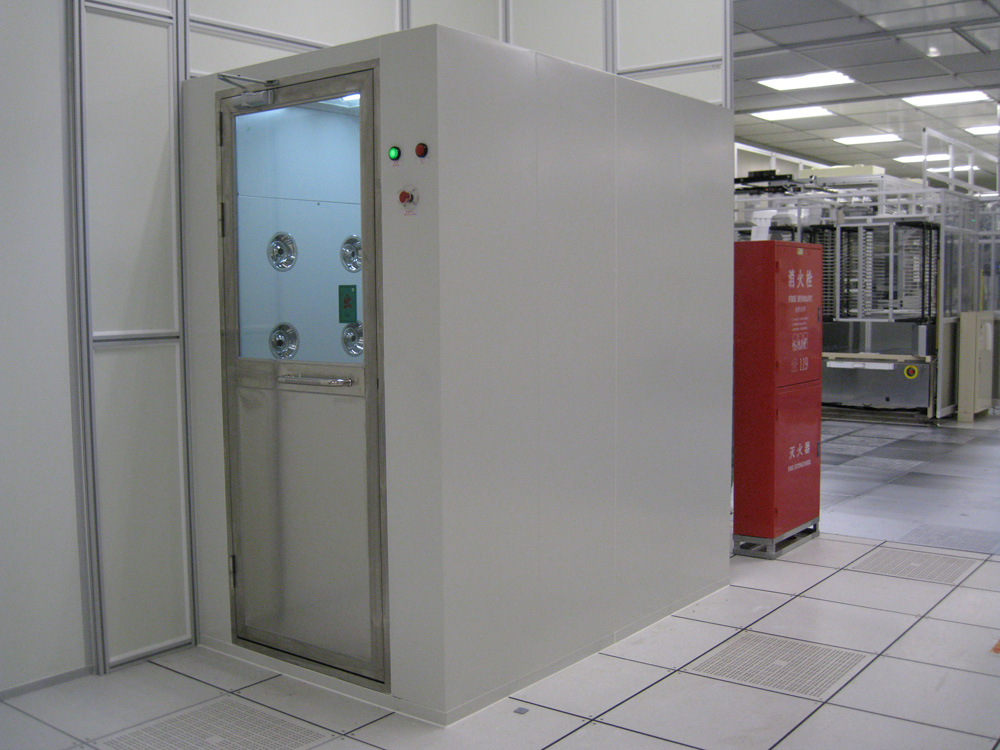

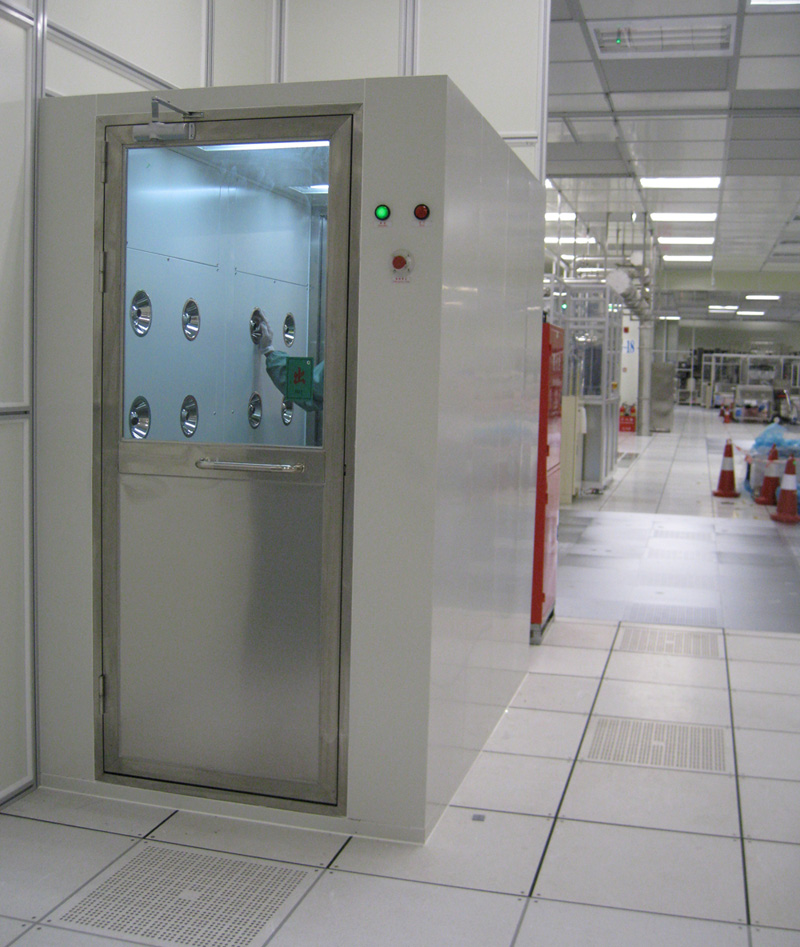

Air shower is equipment of cleanroom and fabricated small Room,used for blowing off ppl’s and belongs’s carry on dust,as Well as act as air valve usage,preventing air into the cleanroom without purification which effectively prevent the cleanroom be polluted. The air by the action of fan though the primary filter access Air to plenum chamber.after though HEPA filter cleaning, by the highly speed blowing though air shower nozzle which direction can be adjusted .the blowing off dust was recycling to the pre filter to achieve ppl and goods and air shower’s indoor self-recycling clean systems


System: infrared Automatic reaction system,

Interlock :electric/ mechanical

Showering time: The 0-99 seconds adjustable (99s factory defaults)

Structure:open side by side or right-angle to open the door

External frame: Stainless steel or coated cold-roll steel

Door, floor, nozzle and panel: stainless steel

Filter :primary and hepa filter

Fan: low vibration, low noise, imported or domestic fan

Winds: 20~28 m/s

Power:220v/110v/380v

Optional: Alternative frame materials and size available on request

.

Specifications	FL1R115	FL1R1401	FL2R1402	FL3R1403	FL1800	FL2100
L×W×H(mm) Air shower room size	1150×1000×2050	1400×1000×2050	1400×1600×2050	1400×2000×2050	1800×2000×2050	2100×2000×2050
L×W×H（mm） The showing area size	790×910× 1930	790×910× 1930	790×1530×1930	790×1910× 1930	1200×1910× 1930	1500×1910× 1930
HEPA filter nos	610*610*100 mm   1 pc	610*610*100 mm   2 pcs	610*610*100 mm   2 pcs	610*610*100 mm   4 pcs	610*610*100 mm   4 pcs	610*610*100 mm    4 pcs
Nozzle number（pc）	6	12	18	24	24	24
Efficiency	99.99 % 0.3 um   (H14)
Wind（m/s）	20~28
Power	3phase  380V  50HZ( option:220V ,3 phase or 220 V 1phase etc )
Power（KW）	0.75	1.5	2	2.2	3	4.5
Suitable Numbers	1~2	1~2	3	4	many	many
