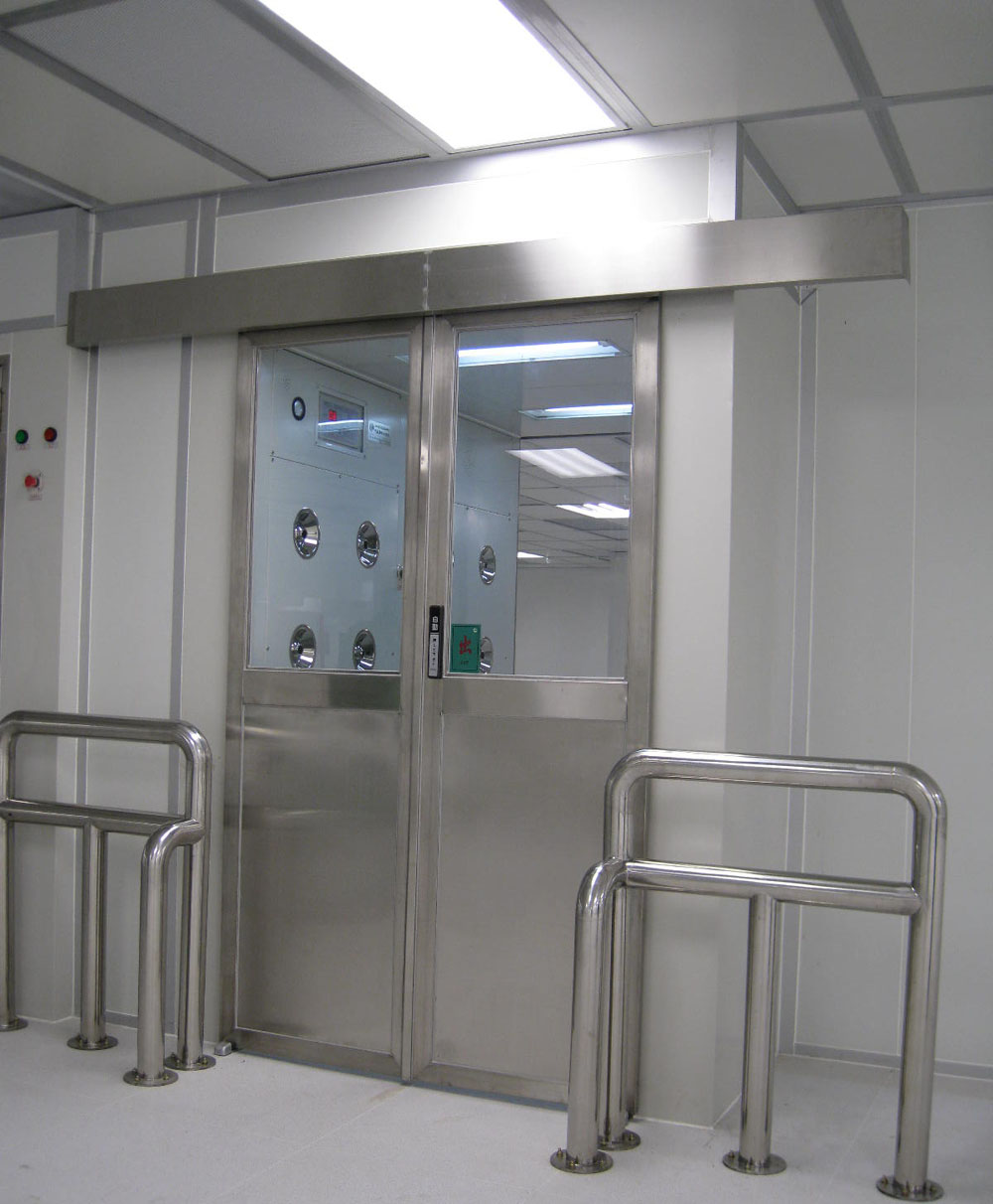

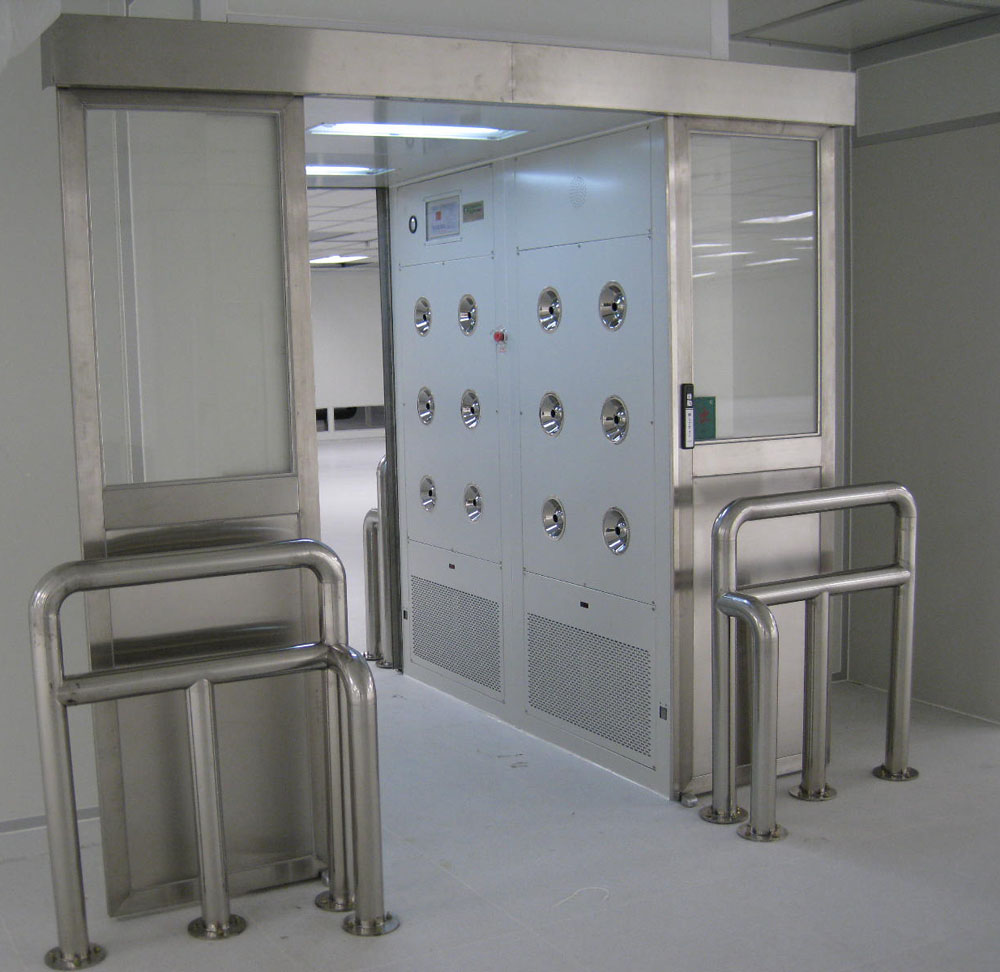

Automatic Clean Room Air Shower With Sliding Door
- Product Details:
-
Dimension (W*D*H):W1700*D2000*H2180
In size (mm):W1200*D2000*H1980
Type Suitable: Suitable for small trailers and/or channels that are double use for cargo and personnel
Rated air flow:25m/s
Power:380V
Material:stainless steel
Blowing side:double side blowinng
Brand:ACAT auto cargo air shower
Place of origin:shenzhen,china
Warranty:1 year
Detailed Product Description
System : Infrared Automatic reaction air showering system,
Interlock : Electric
Showering time: The 0-99 seconds adjustable (air showering time display)
Structure : Sliding doors by auto door system in panasonic brand
Brushless DC 24V 50W motor
Opening speed:14-40 cm/s (adjustable)
Closing speed:13-38cm/s(adjustable)
Opening time:0-9 s adjustable (With collision rebound function)
External frame：Stainless steel or coated cold-roll steel
Door, nozzle: stainless steel
Filter : Pre filter and hepa filter
Fan: Low vibration, low noise, imported or domestic fan
Winds: 20~28 m/s
Power: 220v/110v/380v
Optional: Protective crash fence or barriers at the sides of the entrance
Automatic sliding door cargo shower room open mode optional:
1. Wireless remote control
2. Microwave Automatic Induction Switch
3. wireless press button switch
4. Contact button switch
Interlock : Electric
Showering time: The 0-99 seconds adjustable (air showering time display)
Structure : Sliding doors by auto door system in panasonic brand
Brushless DC 24V 50W motor
Opening speed:14-40 cm/s (adjustable)
Closing speed:13-38cm/s(adjustable)
Opening time:0-9 s adjustable (With collision rebound function)
External frame：Stainless steel or coated cold-roll steel
Door, nozzle: stainless steel
Filter : Pre filter and hepa filter
Fan: Low vibration, low noise, imported or domestic fan
Winds: 20~28 m/s
Power: 220v/110v/380v
Optional: Protective crash fence or barriers at the sides of the entrance
Automatic sliding door cargo shower room open mode optional:
1. Wireless remote control
2. Microwave Automatic Induction Switch
3. wireless press button switch
4. Contact button switch
| Model | HLPY1700-2 | HLPY1700-3 |
| Overall Size(mm) | W1700*D2000*H2180 | W1700*D3000*H2180 |
| Internal Size(mm) | W1200*D2000*H1980 | W1200*D3000*H1980 |
| Air Flow Speed(m/s) | 18-22 | |
| Number Of Nozzles | 24 | 36 |
| Air Showering Time (S) | 10s Factory Setting,10- 99s Adjustable | |
| Material Of Main Body | 1.2mm Power Coated Steel, Surface Electrostatic Spraying | |
| Material Of Door | SUS 201/ SUS 304 stainless steel | |
| HEPA Filter | 610*610*69*4pcs,99.99%@0.3um | 610*610*69*6pcs,99.99%@0.3um |
| Fan Power (W) | 750*4 | 750*6 |
| Light Power (W) | 20*2 | 20*3 |
| Voltage Supply | 380v 50hz | |
