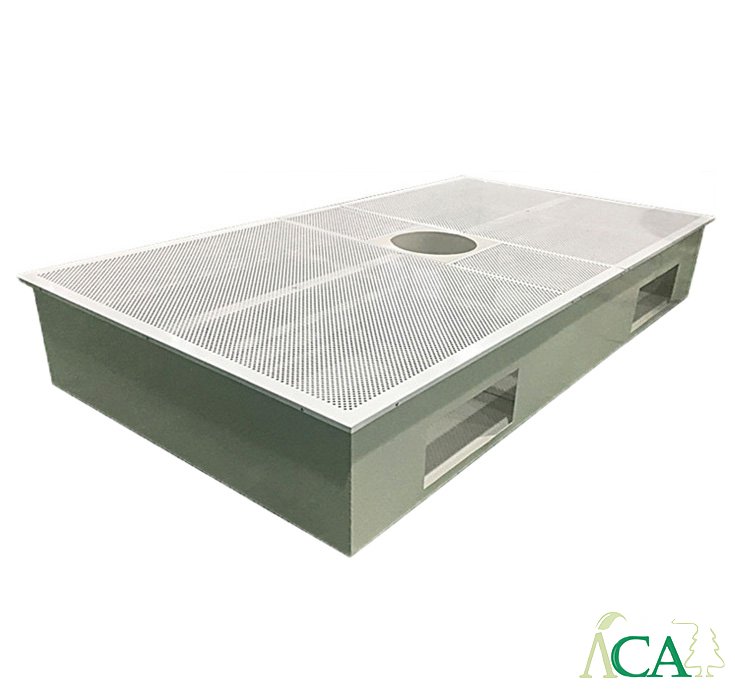

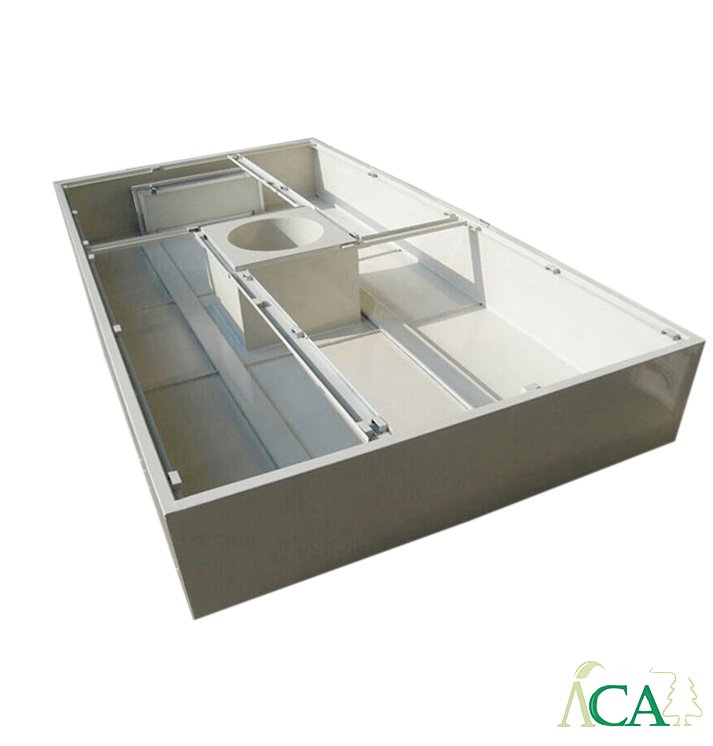

ClassI ISO5 Hospital operation room laminar flow ceiling
- Product Details:
-
Dimension (W*D*H):2600mm*2400mm*450mm
In size (mm):
Type Suitable:operation room
Rated air flow:0.45m/s
Power:/
Material:power coated steel
Blowing side:downside laminar flow
Brand:alphaclean
Place of origin:shenzhen,china
Warranty:1 year
Detailed Product Description
In accordance with the purification class, laminar flow air supply ceiling is divided into Class 5/6/7/ 8 /9 (ISO14644-1) laminar flow air supply ceiling,or classified to burn ward, blood ward and ophthalmic operating room laminar flow air supply ceiling, etc.
laminar flow air supply ceiling materials and advantages
a. Plastic-sprayed electrolytic plate and stainless steel materials can be selected by customers.
b. The T type special aluminum configured with spring clip-on installation makes the maintenance and installation convenient and time-saving.
c: The DPP equalizer net makes the air more uniform and gentle. The medium speed airflow compensation device is optional.
d. The high efficiency air filter can be decorated to two kinds of air supply,side air supply and roof air supply. The non-standard dimension of laminar flow air supply ceiling can be made in case of special actual environment.
Ceiling Laminar air flow Parameters
laminar flow air supply ceiling materials and advantages
a. Plastic-sprayed electrolytic plate and stainless steel materials can be selected by customers.
b. The T type special aluminum configured with spring clip-on installation makes the maintenance and installation convenient and time-saving.
c: The DPP equalizer net makes the air more uniform and gentle. The medium speed airflow compensation device is optional.
d. The high efficiency air filter can be decorated to two kinds of air supply,side air supply and roof air supply. The non-standard dimension of laminar flow air supply ceiling can be made in case of special actual environment.
Ceiling Laminar air flow Parameters
| Model | P11-TH01-000 | P11-TH02-000 | P11-TH03-000 | P11-TH03-001 | P11-TH01-000 | P11-TH04-000 |
| Class | Class 5 | Class 6 | Class 7/8/9 | Burn ward | Blood ward | Ophthalmic OT |
| Ceiling dimension | 2600*2400*450 | 2600*1800*500 | 2600*1400*500 | 2600*1400*500 | 2600*2400*500 | 1500*1500*500 |
| Installation type and HEPA filter size | laying | |||||
| 920*1140*69 | 920*840*69 | 920*610*69 | 920*610*69 | 920*1140*69 | 690*422*69 | |
| Hepa filter QTY | 4 | 4 | 4 | 4 | 4 | 4 |
| Air flow (m/s) | 0.45 | 0.3 | 0.23 | 0.23 | 0.45 | 0.45 |
| Initial pressure drop(pa) | 125 | 100 | 80 | 80 | 125 | 125 |
| Installation type and HEPA filter size | Standing | |||||
| 610*305*292 | 610*305*292 | 610*305*292 | 610*305*292 | 610*305*292 | 610*305*292 | |
| Hepa filter QTY | 8 up to 10 | 4 up to 6 | 2 up to 4 | 3 | 8 up to 10 | 4 |
