Framed Double-Pane Cleanroom Window/View Panel/Sight Window/View Window

FEATURES:
Flush mounted on the wall
the wall and the window are in the same plane, and the installation is flexible and beautiful. It can be made according to the thickness of different walls, especially suitable for 50~100mm thick color panel.

Sound insulation:
generally hollow glass can reduce noise by about 30 decibels,
and insulating glass filled with inert gas can be reduced by about 5 decibels on the original basis,  80 decibel noise is reduced to 45 decibels and is extremely quiet.

hollow glasses with good thermal insulation performance

Anti-frosting:
 In the environment with large temperature difference between indoor and outdoor in winter, frosting will occur on single-layer glass doors and windows, the use of insulating glass has no frosting.


Width	982,1182,2370mm
Thickness	50, 75, 100mm ;to sandwich panel’s thickness
Frame	screen print black or white ,width 20-25mm
Material	aluminum alloy, SUS304 stainless steel for window frame; 5mm tempered glass
Infill	Dry agent, N2 nitrogen
Shape	Right angle/round angle /right angled outside and round inside
Connection	/
Note:  The dimension of clean room window can be customized according to requirements.

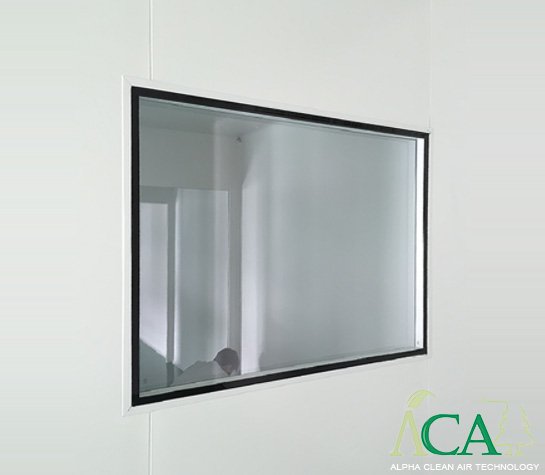

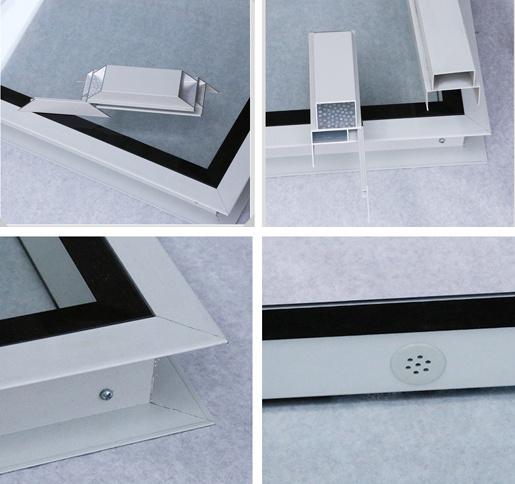

PRODUCT DISPLAY
