Laminar Flow With HEPA Operating Room Hospital Ward Construction
- Product Details:
-
cleanroom level:CLASS I II III IV
Brand:alphaclean
Application:hospital,ICU,ward operating room
Place of origin:guandong,china
Size:100 square meters ~ as per your floor plan
Scope:wall panel,HVAC ,flooring,cables,auto control,mecical gas system
Period:5 days
Service:free operating training,overseas installation
Document:CE,ISO,ROHS
Warranty:1 year
Detailed Product Description
Laminar Flow With HEPA Operating Room Hospital Ward Construction

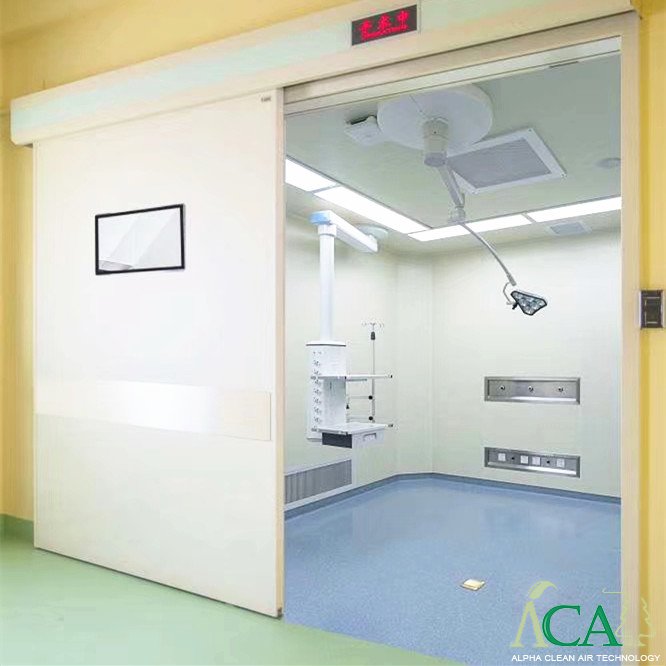

Operating Theatre Surgery Room consists on wall panels, ceiling panels, interior doors and windows.
The System is designed for operating theatres, treatment rooms and rooms in which high sanitary and hygienic standards are required.
Our products are designed and manufactured according to ISO 9001:2000 standards.
We prepare each project according to individual needs and demands of our customers.
alphaclean provides one-stop service in clean room such as hospital operating room, ICU, ward, pharmaceuticals,bio-lab and so on.
We provide all process from design, manufacturing, installation to after-sales service.
Our design scope
1. Structure: Wall Panel, Ceiling filtering system, Windows, Doors, Various Fittings, Flooring
2. HVAC: AHU, Ducting, Piping, Chiller, dehumidifier, etc.
3. Electric: Lighting, Switch, Cables, Wires, Power Distribution Cabinet, etc
4. Auto-control: PLC Controller, Sensors for Humidity and Temperature, Control Panel
5. Medical Gas System: Medical gas terminal, medical gas pipeline
Basic Devices for whole set OT and ICU room as below:
| Name | Qty | Specification and parameter |
| Built-in device cabinet | 1 set |
Each room is provided with 1 set made of L304 stainless steel materials, 900×1700×350, opened by four doors, with the upper and lower layers provided with high strength glass trailers, on which sufficient surgical equipment can be placed. The cabinets are made of 1.2mm frosted stainless steel plates, and the colors of cabinet doors are similar or the same with the main colors of the operating room, with aluminum alloy or stainless steel used for edge wrapping around, and they can be locked. |
| Built-in anesthetic cabinet | 1 set | Each room is provided one set, with other requirements the same as above. |
| Built-in drug cabinet | 1 set | Each room is provided one set, with other requirements the same as above. |
| View boxes (Film Viewer) | 1 set |
Built-in; 100-class operating room is provided with six couplet view boxes, and other operating rooms are provided with quadruple view boxes. 4 pieces of flexible shifting masking can achieve film reading without glare; and the exterior panels are made of scratch resistant toughened glass, with interior layers made of advanced optical acrylic plates; and the panels are designed without screws, which are elegant and aesthetic, with the housing subject to powder spraying treatment capable of resisting corrosion by sterilizing agents. |
| Built-in writing table | 1 set |
Each operating room is provided with one, made of L304-1.2mmstainless steel material, with lighting and convenience in maintenance and replacement. |
| Heat insulation cabinet | / | Preferably 1 set |
| Multifunctional information control box | 1 set |
The operating room is provided with six control panels. The major functions include clock, double timer clock, control screen(common ceiling mounted lighting system switches and electric equipment control switches), telephone functions, air-conditioning system (temperature and humidity control), call and other control. |
| Infusion ducts | 1 set | Each room is provided with 1 set, and each set contains 2 stainless steel rings. |
| Combined power socket box | 3 groups | There are three 220V 15A power sockets for each group, with bottom boxes and covers; and 1 grounding terminal. |
| Combined power socket box | 1 group |
Each group is provided with one 3-phase 380V 20A power socket, two 220V 15A power sockets, with bottom boxes and covers; and 1 grounding terminal. |
| Air supply ceiling (laminar hoods) | 1 set |
1) The box is the double layer structure, with the inner layer made of stainless steel plates or attached with PVC film steel plates, and outer layer made of color steel plates, and with the interior filled with Level B1 XPS plates, and high strength aluminum alloy frames to ensure that the boxes have considerable ability to resist pressure, with heat insulation performance and resistance to corrosion; 2) High efficiency side cloth to ensure considerable static pressure volume; 3) Double-layer current equalizers are used to ensure uniform air supply; 4) The middle part is provided with medium-speed air flow compensation devices used to set off the impact of a rise in air flow out of heat from equipment and personnel on the Cleaning result. |
| Anchor bolts for shadowless lamps | / | 1 set/room |
| Tower crane anchor bolts | / | 1 set/room |
